HH3C-CONFIG-MAN-MIB
About this MIB
Use this MIB to manage the device configuration. For example, access this MIB to save, back up, or restore the configuration. This MIB also contains notifications about configuration changes.

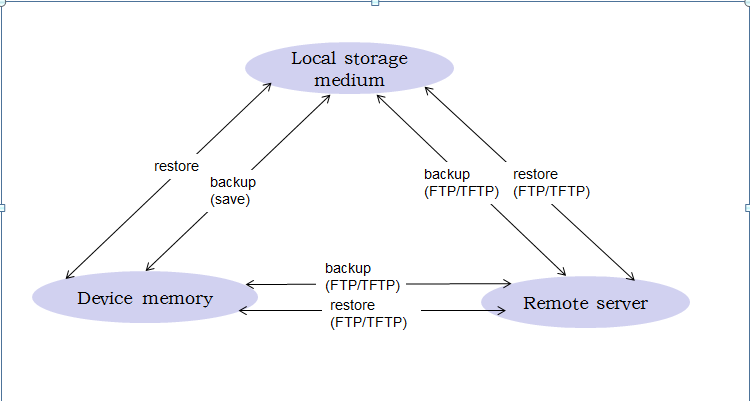

The following figure shows the relationship among the device memory, local storage medium, and remote server in configuration backup and restoration:
MIB file name
hh3c-config-man.mib
Root object
iso(1).org(3).dod(6).internet(1).private(4).enterprises(1).hh3c(25506).hh3cCommon(2).hh3cConfig(4)
Scalar objects
hh3cCfgRunModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.1)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgRunModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.1) |
read-only |
TimeTicks |
Standard MIB values. |
Time when the running configuration was last modified. |
As per the MIB. |
hh3cCfgRunSavedLast (1.3.6.1.4.1.25506.2.4.1.1.2)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgRunSavedLast (1.3.6.1.4.1.25506.2.4.1.1.2) |
read-only |
TimeTicks |
Standard MIB values. |
Time when the running configuration was last saved. |
As per the MIB. |
hh3cCfgStartModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.3)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgStartModifiedLast (1.3.6.1.4.1.25506.2.4.1.1.3) |
read-only |
TimeTicks |
Standard MIB values. |
Time when the next-startup configuration file used currently was last modified. |
As per the MIB. |
hh3cCfgLogLimitedEntries (1.3.6.1.4.1.25506.2.4.1.1.4)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgLogLimitedEntries (1.3.6.1.4.1.25506.2.4.1.1.4) |
read-only |
Integer32 |
Integer32 (0..2147483647) |
Maximum number of rows in the hh3cCfgLogTable. |
As per the MIB. |
hh3cCfgLogDeletedEntries (1.3.6.1.4.1.25506.2.4.1.1.5)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgLogDeletedEntries (1.3.6.1.4.1.25506.2.4.1.1.5) |
read-only |
Counter32 |
Counter32 (0..2147483647) |
Total number of rows deleted from the hh3cCfgLogTable. |
As per the MIB. |
hh3cCfgLogWantBackup (1.3.6.1.4.1.25506.2.4.1.1.6)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgLogWantBackup (1.3.6.1.4.1.25506.2.4.1.1.6) |
read-write |
TruthValue |
true(1) false(2) |
Whether to back up the values of objects for the hh3cCfgLogTable. |
The value for IRF-incapable devices is false. The value can be set to true for IRF-capable devices. |
hh3cCfgOperateGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.1)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgOperateGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.1) |
read-only |
Integer32 |
Integer32 (1..10) |
Maximum number of rows in the hh3cCfgOperateTable. |
As per the MIB. |
hh3cCfgOperateEntryAgeOutTime (1.3.6.1.4.1.25506.2.4.1.2.2)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgOperateEntryAgeOutTime (1.3.6.1.4.1.25506.2.4.1.2.2) |
read-write |
Integer32 |
Integer32 (1..60) |
Aging time for entries in the hh3cCfgOperateTable, in minutes. |
As per the MIB. |
hh3cCfgOperateResultGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.3)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgOperateResultGlobalEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.3) |
read-write |
Integer32 |
Integer32 (1..50) |
Maximum number of rows in the hh3cCfgOperateResultTable. |
As per the MIB. |
hh3cCfgReset (1.3.6.1.4.1.25506.2.4.1.2.7)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgReset (1.3.6.1.4.1.25506.2.4.1.2.7) |
read-write |
INTEGER |
normal(1) reset(2) |
Reboots the device with factory defaults. |
As per the MIB. |
hh3cCfgExecuteOperateResultEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.6.1)
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgExecuteOperateResultEntryLimit (1.3.6.1.4.1.25506.2.4.1.2.6.1) |
read-write |
Integer32 |
Integer32 (5..20) |
Maximum number of rows in the hh3cCfgExecuteResultTable. |
As per the MIB. |
Tabular objects
hh3cCfgLogTable
About this table
Use this table to obtain configuration change records.
Support for operations
Create |
Edit/Modify |
Delete |
Read |
Not supported |
Not supported |
Not supported |
Supported |
Columns
The table index is hh3cCfgLogIndex.
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgLogIndex (1.3.6.1.4.1.25506.2.4.1.1.7.1.1) |
not-accessible |
Integer32 |
Integer32 (1..2147483647) |
Index of a configuration log. |
As per the MIB. |
hh3cCfgLogTime (1.3.6.1.4.1.25506.2.4.1.1.7.1.2) |
read-only |
TimeTicks |
TimeTicks (0..4294967295) |
Time when the configuration log was generated. |
As per the MIB. |
hh3cCfgLogSrcCmd (1.3.6.1.4.1.25506.2.4.1.1.7.1.3) |
read-only |
INTEGER |
cmdLine(1) snmp(2) other(3) |
Type of the source command that caused the log generation. |
As per the MIB. |
hh3cCfgLogSrcData (1.3.6.1.4.1.25506.2.4.1.1.7.1.4) |
read-only |
INTEGER |
erase(1) runningData(2) commandSource(3) startupData(4) local(5) netFtp(6) hotPlugging(7) |
Source data recorded in the configuration log. |
As per the MIB. |
hh3cCfgLogDesData (1.3.6.1.4.1.25506.2.4.1.1.7.1.5) |
read-only |
INTEGER |
unknown(1) runningData(2) commandSource(3) startupData(4) local(5) netFtp(6) hotPlugging(7) |
Destination data recorded in the configuration log. |
As per the MIB. |
hh3cCfgLogTerminalType (1.3.6.1.4.1.25506.2.4.1.1.7.1.6) |
read-only |
INTEGER |
notApplicable(1) unknown(2) console(3) terminal(4) virtual(5) auxiliary(6) |
Terminal type recorded in the configuration log. |
As per the MIB. |
hh3cCfgLogTerminalUser (1.3.6.1.4.1.25506.2.4.1.1.7.1.7) |
read-only |
DisplayString |
OCTET STRING (0..64) |
Name of the user that logged in to the CLI. |
If the user uses SNMP to modify the device configuration, the value of this object is the SNMPv3 username. |
hh3cCfgLogTerminalNum (1.3.6.1.4.1.25506.2.4.1.1.7.1.8) |
read-only |
Integer32 |
Integer32 (-2147483648..2147483647) |
Number of terminals recorded in the configuration log. |
If the value of hh3cCfgLogSrcCmd is not cmdLine, the value of this object must be -1. |
hh3cCfgLogTerminalLocation (1.3.6.1.4.1.25506.2.4.1.1.7.1.9) |
read-only |
DisplayString |
OCTET STRING (0..64) |
User location information recorded in the configuration log. |
As per the MIB. |
hh3cCfgLogCmdSrcAddress (1.3.6.1.4.1.25506.2.4.1.1.7.1.10) |
read-only |
IpAddress |
OCTET STRING (4) |
User IP address information recorded in the configuration log. |
As per the MIB. |
hh3cCfgLogVirHost (1.3.6.1.4.1.25506.2.4.1.1.7.1.11) |
read-only |
DisplayString |
OCTET STRING (0..64) |
Host name of the remote system recorded in the configuration log. |
If the value of hh3cCfgLogTerminalType is virtual, the value of this object is the host name of the remote system connected to the system. In other situations, the value of this object is a zero-length string. |
hh3cCfgLogUserName (1.3.6.1.4.1.25506.2.4.1.1.7.1.12) |
read-only |
DisplayString |
OCTET STRING (0..64) |
Service username recorded in the configuration log. |
If the value of the hh3cCfgLogSrcData and hh3cCfgLogDesData nodes are any values other than netFtp, the value of this node is a zero-length string. |
hh3cCfgLogServerAddress (1.3.6.1.4.1.25506.2.4.1.1.7.1.13) |
read-only |
IpAddress |
OCTET STRING (4) |
Server address recorded in the configuration log. |
If the values of the hh3cCfgLogSrcData and hh3cCfgLogDesData nodes are any values other than netFtp, the value of this node is 0.0.0.0. |
hh3cCfgLogFile (1.3.6.1.4.1.25506.2.4.1.1.7.1.14) |
read-only |
DisplayString |
OCTET STRING (0..64) |
Current configuration file name recorded in the configuration log. |
As per the MIB. |
hh3cCfgOperateTable
About this table
Use this MIB to manage configuration file transfers between the NMS and the device, for example, through FTP or TFTP.
Support for operations
Create |
Edit/Modify |
Delete |
Read |
Supported |
Supported |
Supported |
Supported |
If the row status is active, you cannot modify the objects in the table.
Columns
The table index is hh3cCfgOperateIndex.
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgOperateIndex (1.3.6.1.4.1.25506.2.4.1.2.4.1.1) |
not-accessible |
Integer32 |
Integer32 (1..2147483647) |
Index of a configuration file operation. |
As per the MIB. |
hh3cCfgOperateType (1.3.6.1.4.1.25506.2.4.1.2.4.1.2) |
read-create |
ConfigOperationType |
running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8) |
Operation type. |
As per the MIB. |
hh3cCfgOperateProtocol (1.3.6.1.4.1.25506.2.4.1.2.4.1.3) |
read-create |
INTEGER |
ftp(1) tftp(2) clusterftp(3) clustertftp(4) |
Protocol used for file transfer. |
As per the MIB. |
hh3cCfgOperateFileName (1.3.6.1.4.1.25506.2.4.1.2.4.1.4) |
read-create |
DisplayString |
OCTET STRING (1..128) |
Configuration file name. |
As per the MIB. |
hh3cCfgOperateServerAddress (1.3.6.1.4.1.25506.2.4.1.2.4.1.5) |
read-create |
IpAddress |
OCTET STRING (4) |
Address of the remote configuration file server. |
As per the MIB. |
hh3cCfgOperateUserName (1.3.6.1.4.1.25506.2.4.1.2.4.1.6) |
read-create |
DisplayString |
OCTET STRING (0..40) |
Username used to access the remote server. |
If the value of hh3cCfgOperateType is running2Net, net2Running, net2Startup, or startup2Net and the value of hh3cCfgOperateProtocol is ftp, this node represents the username used to access the FTP server. In this case, you must specify this node for the create operation. |
hh3cCfgOperateUserPassword (1.3.6.1.4.1.25506.2.4.1.2.4.1.7) |
read-create |
DisplayString |
OCTET STRING (0..40) |
Password used to access the remote server. |
If the value of hh3cCfgOperateType is running2Net, net2Running, net2Startup, or startup2Net and the value of hh3cCfgOperateProtocol is ftp, this node represents the password used to access the FTP server. In this case, you must specify this node for the create operation. When read, this node returns a zero-length string. |
hh3cCfgOperateEndNotificationSwitch (1.3.6.1.4.1.25506.2.4.1.2.4.1.8) |
read-create |
TruthValue |
true(1) false(2) |
Whether to notify that the operation completes. By default, the value is false. |
As per the MIB. |
hh3cCfgOperateRowStatus (1.3.6.1.4.1.25506.2.4.1.2.4.1.9) |
read-create |
RowStatus |
active(1) notInService(2) notReady(3) createAndGo(4) createAndWait(5) destroy(6) |
Row status. |
A row entry cannot be modified if its row status is active. |
hh3cCfgOperateServerPort (1.3.6.1.4.1.25506.2.4.1.2.4.1.10) |
read-create |
Integer32 |
Integer32 (0..65535) |
Remote port number. If the value is an invalid port number, the default port number is used. |
As per the MIB. |
hh3cCfgOperateSrvAddrType (1.3.6.1.4.1.25506.2.4.1.2.4.1.11) |
read-create |
InetAddressType |
unknown(0) ipv4(1) ipv6(2) ipv4z(3) ipv6z(4) dns(16) |
Address type of the remote server. |
Supports only ipv4, ipv6, and dns. |
hh3cCfgOperateSrvAddrRev (1.3.6.1.4.1.25506.2.4.1.2.4.1.12) |
read-create |
InetAddress |
OCTET STRING (0..255) |
Address of the remote server. |
If the value of the hh3cCfgOperateSrvAddrType object is ipv4, ipv6, or dns, you must specify this object. An IPv4 address is in dotted decimal notation. An IPv6 address is a colon-separated hexadecimal string. A DNS address is a string of up to 253 characters. |
hh3cCfgOperateSrvVPNName(1.3.6.1.4.1.25506.2.4.1.2.4.13) |
read-create |
DisplayString |
OCTET STRING (0..255) |
Name of the VPN instance to which the remote server belongs. |
As per the MIB. |
hh3cCfgOperateResultTable
About this table
Use this table to obtain the creation result of rows in the hh3cCfgOperateTable.
Support for operations
Create |
Edit/Modify |
Delete |
Read |
Not supported |
Not supported |
Supported |
Supported |
A row is automatically created or deleted in this table for each row created or deleted in the hh3cCfgOperateTable.
Columns
The table index is hh3cCfgOperateResultIndex.
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgOperateResultIndex (1.3.6.1.4.1.25506.2.4.1.2.5.1.1) |
not-accessible |
Integer32 |
Integer32 (1..2147483647) |
Index of the hh3cCfgOperateResultIndex table. |
As per the MIB. |
hh3cCfgOperateResultOptIndex (1.3.6.1.4.1.25506.2.4.1.2.5.1.2) |
read-only |
Integer32 |
Integer32 (1..2147483647) |
Index of a configuration file operation in the hh3cCfgOperateTable. |
As per the MIB. |
hh3cCfgOperateResultOpType (1.3.6.1.4.1.25506.2.4.1.2.5.1.3) |
read-only |
ConfigOperationType |
running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8) |
Type of the operation. |
As per the MIB. |
hh3cCfgOperateState (1.3.6.1.4.1.25506.2.4.1.2.5.1.4) |
read-only |
ConfigOperationStateType |
opInProgress(1) opSuccess(2) opInvalidOperation(3) opInvalidProtocol(4) opInvalidSourceName(5) opInvalidDestName(6) opInvalidServerAddress(7) opDeviceBusy(8) opDeviceOpenError(9) opDeviceError(10) opDeviceNotProgrammable(11) opDeviceFull(12) opFileOpenError(13) opFileTransferError(14) opFileChecksumError(15) opNoMemory(16) opAuthFail(17) opTimeOut(18) opUnknownFailure(19) opInvalidConfigFile(20) opSlaveFull(21) opCopyToSlaveFailure(22) |
Operation state type. |
If the value is opFileOpenError(13), the configuration file might be invalid, might not exist, or might not be accessible. |
hh3cCfgOperateTime (1.3.6.1.4.1.25506.2.4.1.2.5.1.5) |
read-only |
TimeTicks |
Standard MIB values. |
Time when the configuration started. |
As per the MIB. |
hh3cCfgOperateEndTime (1.3.6.1.4.1.25506.2.4.1.2.5.1.6) |
read-only |
TimeTicks |
Standard MIB values. |
Time when the configuration was finished. |
As per the MIB. |
hh3cCfgOperFailReason (1.3.6.1.4.1.25506.2.4.1.2.5.1.7) |
read-only |
DisplayString |
OCTET STRING (0..255) |
Failure reason of the configuration file operation. |
As per the MIB. |
hh3cCfgOperateFailCmd (1.3.6.1.4.1.25506.2.4.1.2.5.1.8) |
read-only |
DisplayString |
OCTET STRING (0..512) |
Command for the failed configuration file operation. |
As per the MIB. |
hh3cCfgOperateFailCmdView (1.3.6.1.4.1.25506.2.4.1.2.5.1.9) |
read-only |
DisplayString |
OCTET STRING (0..264) |
View of the command for the failed configuration file operation |
As per the MIB. |
hh3cCfgOperateFailCmdReason (1.3.6.1.4.1.25506.2.4.1.2.5.1.10) |
read-only |
DisplayString |
OCTET STRING (0..255) |
Reason for the failed configuration file operation in terms of the command. |
The possible failure reasons include: · Failed to execute command. · Failed to parse command. |
hh3cCfgExecuteResultTable
About this table
Use this table to obtain execution results about the startup2Running, net2Running, and file2Running operations created in the hh3cCfgOperateTable.
Support for operations
Create |
Edit/Modify |
Delete |
Read |
Not supported |
Not supported |
Supported |
Supported |
A row is automatically created in this table for each row created in the hh3cCfgOperateTable if the operation type of the row in the hh3cCfgOperateTable is startup2Running, net2Running, or file2Running.
Columns
The table index is hh3cCfgExecuteResultIndex.
Object (OID) |
Access |
Syntax |
Value range |
Description |
Implementation |
hh3cCfgExecuteResultIndex (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.1) |
not-accessible |
Integer32 |
Integer32 (1..2147483647) |
Index of a configuration file execution result. |
As per the MIB. |
hh3cCfgExecuteResultOptIndex (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.2) |
read-only |
Integer32 |
Integer32 (1..2147483647) |
Index of a configuration file execution in the hh3cCfgOperateTable. |
As per the MIB. |
hh3cCfgExecuteResultOpType (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.3) |
read-only |
ConfigOperationType |
running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) running2File(7) file2Running(8) |
Operation type of the configuration file execution. |
As per the MIB. |
hh3cCfgExecuteState (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.4) |
read-only |
ConfigOperationStateType |
opInProgress(1) opSuccess(2) opInvalidOperation(3) opInvalidProtocol(4) opInvalidSourceName(5) opInvalidDestName(6) opInvalidServerAddress(7) opDeviceBusy(8) opDeviceOpenError(9) opDeviceError(10) opDeviceNotProgrammable(11) opDeviceFull(12) opFileOpenError(13) opFileTransferError(14) opFileChecksumError(15) opNoMemory(16) opAuthFail(17) opTimeOut(18) opUnknownFailure(19) opInvalidConfigFile(20) opSlaveFull(21) opCopyToSlaveFailure(22) |
Configuration fie execution status. |
As per the MIB. |
hh3cCfgExecuteTime (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.5) |
read-only |
TimeTicks |
TimeTicks (0..4294967295) |
Time when the configuration file execution started. |
As per the MIB. |
hh3cCfgExecuteEndTime (1.3.6.1.4.1.25506.2.4.1.2.6.2.1.6) |
read-only |
TimeTicks |
TimeTicks (0..4294967295) |
Time when the configuration file execution ended. |
As per the MIB. |
Notifications
hh3cCfgManEventlog
Basic information
OID |
Event |
Type |
Severity |
Recovery notification |
Default status |
1.3.6.1.4.1.25506.2.4.2.1 |
Configuration change event. |
Informational |
Warning |
N/A |
ON |
Notification triggers
This notification is generated as follows:
· The save command is used.
· A next-startup configuration file is specified.
· An operation that affects the next-startup configuration file is performed, for example, copy, rename, and delete.
· SNMP detects a data change.
System impact
Change of the system running configuration or next-startup configuration file.
Status control
ON
CLI: Use the snmp-agent trap enable configuration command.
OFF
CLI: Use the undo snmp-agent trap enable configuration command.
Objects
OID (object name) |
Description |
Index nodes |
Type |
Value range |
1.3.6.1.4.1.25506.2.4.1.1.7.1.3 (hh3cCfgLogSrcCmd) |
Configuration source. |
hh3cCfgLogIndex |
INTEGER |
cmdLine(1) snmp(2) |
1.3.6.1.4.1.25506.2.4.1.1.7.1.4 (hh3cCfgLogSrcData) |
Source data. |
hh3cCfgLogIndex |
INTEGER |
runningData(2) startupData(4) |
1.3.6.1.4.1.25506.2.4.1.1.7.1.5 (hh3cCfgLogDesData) |
Destination data. |
hh3cCfgLogIndex |
INTEGER |
runningData(2) startupData(4) |
Recommended action
Check the system running configuration. If necessary, save the running configuration.
hh3cCfgOperateCompletion
Basic information
OID |
Event |
Type |
Severity |
Recovery notification |
Default status |
1.3.6.1.4.1.25506.2.4.2.2 |
A configuration operation completed. |
Informational |
Warning |
N/A |
ON |
Notification triggers
This notification is generated when a configuration operation performed through the hh3cCfgOperateTable completes.
System impact
The running configuration of the device might change.
Status control
ON
· CLI: Use the snmp-agent trap enable configuration command.
· MIB: Set hh3cCfgOperateEndNotificationSwitch to true(1).
OFF
· CLI: Use the undo snmp-agent trap enable configuration command.
· MIB: Set hh3cCfgOperateEndNotificationSwitch to false(2).
Objects
OID (object name) |
Description |
Index nodes |
Type |
Value range |
1.3.6.1.4.1.25506.2.4.1.2.4.1.2 (hh3cCfgOperateType) |
Operation type. |
hh3cCfgOperateIndex |
ConfigOperationType |
running2Startup(1) startup2Running(2) running2Net(3) net2Running(4) net2Startup(5) startup2Net(6) |
1.3.6.1.4.1.25506.2.4.1.2.5.1.5 (hh3cCfgOperateTime) |
Operation start time. |
hh3cCfgOperateIndex |
TimeTicks |
Standard MIB values. |
1.3.6.1.4.1.25506.2.4.1.2.5.1.4 (hh3cCfgOperateState) |
Operation status. |
hh3cCfgOperateIndex |
INTEGER |
opInProgress(1) opSuccess(2) opInvalidOperation(3) opInvalidProtocol(4) opInvalidSourceName(5) opInvalidDestName(6) opInvalidServerAddress(7) opDeviceBusy(8) opDeviceOpenError(9) opDeviceError(10) opDeviceNotProgrammable(11) opDeviceFull(12) opFileOpenError(13) opFileTransferError(14) opFileChecksumError(15) opNoMemory(16) opAuthFail(17) opTimeOut(18) opUnknownFailure(19) opInvalidConfigFile(20) opSlaveFull(21) opCopyToSlaveFailure(22) |
1.3.6.1.4.1.25506.2.4.1.2.5.1.6 (hh3cCfgOperateEndTime) |
Operation end time |
hh3cCfgOperateIndex |
TimeTicks |
Standard MIB values. |
1.3.6.1.4.1.25506.2.4.1.2.5.1.7 (hh3cCfgOperFailReason) |
Failure reason. |
hh3cCfgOperateIndex |
DisplayString |
OCTET STRING (SIZE (0..255)) |
Recommended action
hh3cCfgInvalidConfigFile
Basic information
OID |
Event |
Type |
Severity |
Recovery notification |
Default status |
1.3.6.1.4.1.25506.2.4.2.3 |
An invalid file was used for a configuration file operation. |
Informational |
Minor |
N/A |
ON |
Notification triggers
This notification is generated when the system detects that an invalid file is used for a configuration file operation.
System impact
No impact on services.
Status control
ON
CLI: Use the snmp-agent trap enable configuration command.
OFF
CLI: Use the undo snmp-agent trap enable configuration command.
Objects
OID (object name) |
Description |
Index nodes |
Type |
Value range |
1.3.6.1.4.1.25506.2.4.1.2.4.1.2 (hh3cCfgOperateType) |
Operation type. |
hh3cCfgOperateIndex |
ConfigOperationType |
net2Running(4) net2Startup(5) |
1.3.6.1.4.1.25506.2.4.1.2.4.1.4 (hh3cCfgOperateFileName) |
Configuration file name. |
hh3cCfgOperateIndex |
DisplayString |
OCTET STRING (SIZE (1..128)) |
Recommended action
Verify that the configuration file is valid and use a valid configuration file for configuration restoration.
