LED descriptions for single-LED APs
LED descriptions for single-LED APs (1)
WA6300/WA6500B/WA6600 AP series
WA7200/WA7300/WA7500/WA7600 AP series
LED descriptions for single-LED APs (2)
LED descriptions for multi-LED APs
LED descriptions for multi-LED APs (1)
WA7200/WA7300/WA7500/WA7600 AP series
LED descriptions for multi-LED APs (2)
LED descriptions for multi-LED APs (3)
LED description for the reset button
About LEDs
The LED status includes the color and flashing frequency of the LEDs, which indicates the AP operating status.
APs can be classified into single-LED APs and multi-LED APs based on the LED quantity.

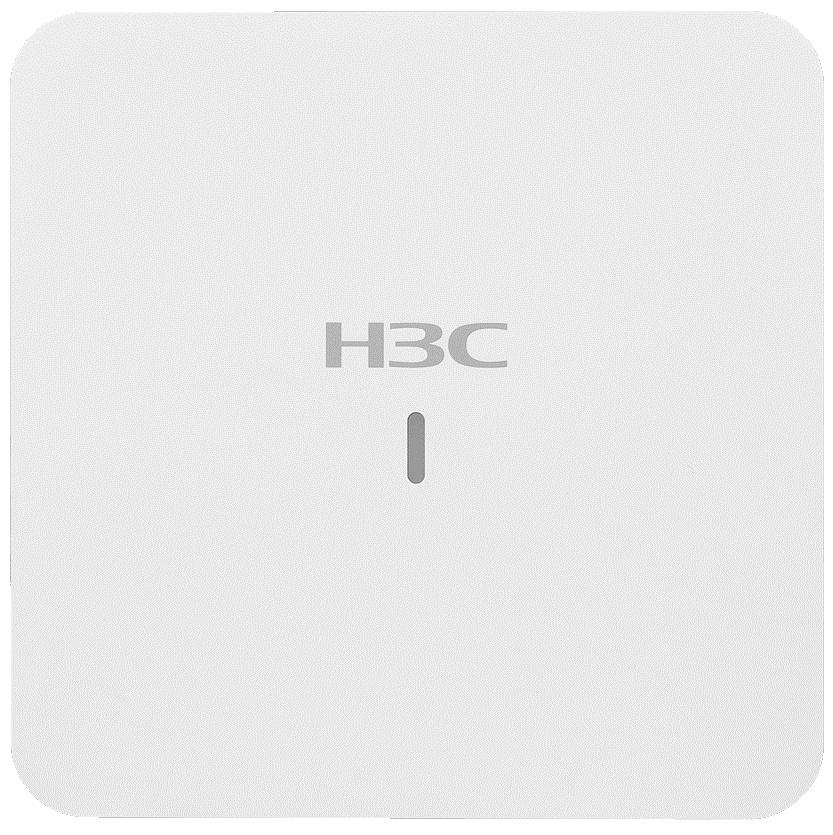

Figure 1 Single-LED AP (WA6520 as an example)

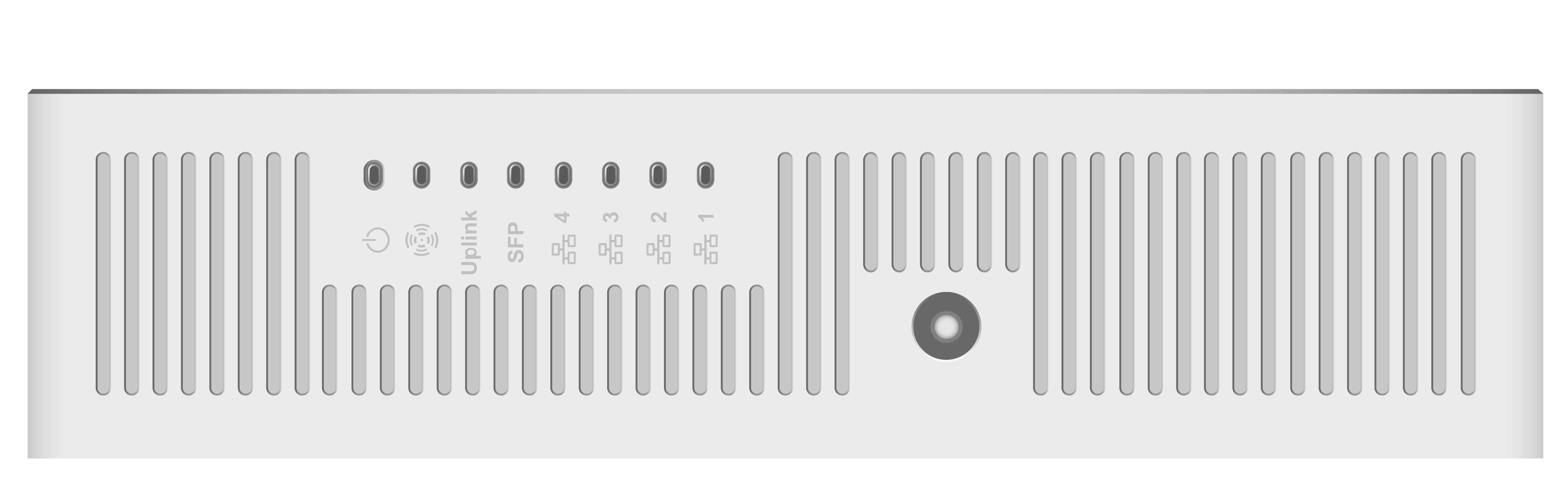

Figure 2 Multi-LED AP (WA6520H as an example)
Wi-Fi 6 AP LEDs
|
AP series |
Models |
Description |
|
|
Wi-Fi 6 |
WA6300 AP series |
· WA6320-HI, WA6320-SI, WA6320-SI-H20, WA6320S-E, WA6320S-C, WA6320X-G, WA6322-G, WA6322H-G, WA6322H-HI, WA6338-HI · WAP922 · WTU630-IOT |
See "WA6300/WA6500B/WA6600 AP series" in "LED descriptions for single-LED APs (1)." |
|
· WA6320, WA6320-C, WA6320-D, WA6322, WA6322H, WA6322H-LI, WA6330, WA6330-LI, WA6338, WA6338-LI · WAP922E, WAP922H, WAP923 · WTU630, WTU632H-IOT |
See "WA6300/WA6600 AP series" in "LED descriptions for single-LED APs (2)." |
||
|
WA6320H-H20, WA6320H-HI, WA6320H-HI-EG |
See "WA6300/WA6500A AP series" in "LED descriptions for multi-LED APs (1)." |
||
|
· WA6320H, WA6320H-LI, WA6320H-XEPON · WTU630H |
See "WA6300 AP series" in "LED descriptions for multi-LED APs (2)." |
||
|
WA6500 AP series |
WA6500A: · WA6020, WA6022H, WA6120, WA6120X, WA6126 · WA6520, WA6520-C, WA6520-E, WA6520-EG, WA6520-EI, WA6520H-HI, WA6520-HI, WA6520-LI, WA6520S-C, WA6520S-D, WA6520S-E, WA6520-SI, WA6520X-E, WA6520XS-LI, WA6521, WA6522, WA6522-C, WA6522H-D, WA6522H-HI, WA6522H-LI, WA6526, WA6526E, WA6530, WA6530-E, WA6530i, WA6530-LI, WA6530M · WAP912X, WAP952, WAP952E, WAP952H, WAP953 |
See "WA6500A AP series" in "LED descriptions for single-LED APs (1)." |
|
|
WA6500B: WA6528i, WA6528X-E |
See "WA6300/WA6500B/WA6600 AP series" in "LED descriptions for single-LED APs (1)." |
||
|
WA6500A: · WA6120H · WA6520H, WA6520H-E, WA6520H-EGPON, WA6520H-LI, WA6520H-SI, WA6526H |
See "WA6300/WA6500A AP series" in "LED descriptions for multi-LED APs (1)." |
||
|
WA6500B: WA6510E-T |
See "WA6500 AP series" in "LED descriptions for multi-LED APs (3)." |
||
|
WA6600 AP series |
WA6636, WA6638i |
See "WA6300/WA6500B/WA6600 AP series" in "LED descriptions for single-LED APs (1)." |
|
|
· WA6620, WA6620X, WA6620X-EG, WA6620XE-LI, WA6620X-LI, WA6620XM, WA6622, WA6622-EG, WA6624X, WA6628, WA6628X, WA6628XM, WA6630X, WA6638 · WAP922X |
See "WA6300/WA6600 AP series" in "LED descriptions for single-LED APs (2)." |
||
|
WA6628E-T |
See "WA6600 AP series" in "LED descriptions for multi-LED APs (3)." |
||
Wi-Fi 7 AP LEDs
Table 2 Wi-Fi 7 AP models
|
Series |
Model |
Description |
|
|
Wi-Fi 7 |
WA7200 AP series |
· WA7130, WA7220, WA7220CE, WA7220-HI, WA7220-LI, WA7220H, WA7220H-EI, WA7220X, WA7226-C, WA7230, WA7230-LI, WA7232 · WTU720 |
See "WA7200/WA7300/WA7500/WA7600 AP series" in "LED descriptions for single-LED APs (1)." |
|
WA7300 AP series |
WA7320, WA7320i, WA7320XE, WA7322H-HI, WA7330i, WA7330X, WA7338-HI |
||
|
WA7500 AP series |
WA7538, WA7539 |
||
|
WA7600 AP series |
WA7620CE, WA7630X, WA7636, WA7638 |
||
|
WA7610E-T |
See "WA7200/WA7300/WA7500/WA7600 AP series" in "LED descriptions for multi-LED APs (1)." |
||
LED descriptions for single-LED APs
The description for the status LED on an AP varies by AP operating mode. For information about the operating modes supported by an AP, see the release notes.
LED descriptions for single-LED APs (1)
WA6300/WA6500B/WA6600 AP series
LED descriptions before modification
This section is applicable to the following APs:
· WA6300 AP series and WA6600 AP series in versions earlier than 2484.
· WA6500B AP series in versions earlier than 2484, which includes the WA6528i and WA6528X-E APs.
Table 3 LED description (fit mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP has started up and registered with an AC, but is in standby state (does not have any associated clients). |
|
Flashing (once every two seconds) |
The AP has started up, but has not registered to any AC. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Flashing (once per second) |
The radios have associated clients. |
Table 4 LED description (cloud mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state, has connected to Cloudnet, but does not have any associated clients. |
|
Flashing (once per second) |
The AP has connected to Cloudnet, and the radios have associated clients. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Steady on |
The AP is in standby state, has not connected to Cloudnet, and does not have any associated clients. |
|
Flashing (once per second) |
The AP has not connected to Cloudnet, but the radios have associated clients. |
Table 5 LED description (anchor AC mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP has started up and is in standby state, but does not have any associated clients. |
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Flashing (once per second) |
The radios have associated clients. |
LED descriptions after modification
This section is applicable to the following APs:
· WA6300 AP series and WA6600 AP series in 2484 and later versions.
· WA6500B AP series in 2484 and later versions, which includes the WA6528i and WA6528X-E APs.
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state and does not have any associated clients. |
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (once per second) |
The radios have associated clients. |
|
|
Blue |
Flashing (twice per second) |
The AP is upgrading the image. |
WA6500A AP series
LED descriptions before modification
This section is applicable to the WA6500A AP series in versions earlier than 2616.
Table 7 LED description (fit mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP has started up and registered with an AC, but is in standby state (does not have any associated clients). |
|
Flashing (once every two seconds) |
The AP has started up, but has not registered to any AC. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Flashing (once per second) |
The radios have associated clients. |
Table 8 LED description (cloud mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state, has connected to Cloudnet, but does not have any associated clients. |
|
Flashing (once per second) |
The AP has connected to Cloudnet, and the radios have associated clients. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Steady on |
The AP is in standby state, has not connected to Cloudnet, and does not have any associated clients. |
|
Flashing (once per second) |
The AP has not connected to Cloudnet, but the radios have associated clients. |
LED descriptions after modification
This section is applicable to the WA6500A AP series in 2616 and later versions.
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state and does not have any associated clients. |
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (once per second) |
The radios have associated clients. |
|
|
Blue |
Flashing (twice per second) |
The AP is upgrading the image. |
WA7200/WA7300/WA7500/WA7600 AP series
LED descriptions before modification
This section is applicable to the following APs:
· WA7200 AP series and WA7600 AP series in versions earlier than 2614P02.
· WA7300 AP series and WA7500 AP series in versions earlier than 2615.
Table 10 LED description (fit mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP has started up and registered with an AC, but is in standby state (does not have any associated clients). |
|
Flashing (once every two seconds) |
The AP has started up, but has not registered to any AC. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Flashing (once per second) |
The radios have associated clients and the number of associated clients is less than the threshold. |
|
Alternating between green and blue |
Flashing (once per second) |
The number of associated clients has exceeded the threshold. |
Table 11 LED description (cloud mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state, has connected to Cloudnet, but does not have any associated clients. |
|
Flashing (once per second) |
The AP has connected to Cloudnet, and the radios have associated clients. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Steady on |
The AP is in standby state, has not connected to Cloudnet, and does not have any associated clients. |
|
Flashing (once per second) |
The AP has not connected to Cloudnet, but the radios have associated clients. The number of associated clients is less than the threshold. |
|
|
Alternating between green and blue |
Flashing (once per second) |
The number of associated clients has exceeded the threshold. |
Table 12 LED description (anchor AC mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP has started up and is in standby state, but does not have any associated clients. |
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Flashing (once per second) |
The radios have associated clients and the number of associated clients is less than the threshold. |
|
Alternating between green and blue |
Flashing (once per second) |
The number of associated clients has exceeded the threshold. |
LED descriptions after modification
This section is applicable to the following APs:
· WA7200 AP series and WA7600 AP series in 2614P02 and later versions.
· WA7300 AP series and WA7500 AP series in 2615 and later versions.
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state and does not have any associated online clients. |
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (once per second) |
The radios have associated clients and the number of associated clients is less than the threshold. |
|
|
Flashing (twice per second) |
The number of associated clients has exceeded the threshold. |
|
|
Blue |
Flashing (twice per second) |
The AP is upgrading the image. |
LED descriptions for single-LED APs (2)
WA6300/WA6600 AP series
LED descriptions before modification
This section is applicable to the WA6300 AP series and WA6600 AP series in versions earlier than 2484.
Table 14 LED description (fit mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP has started up and registered with an AC, but is in standby state (does not have any associated clients). |
|
Flashing (once every two seconds) |
The AP has started up, but has not registered to any AC. |
|
|
Flashing (once per second) |
Only the 2.4G radio has associated clients. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Flashing (once per second) |
Only the 5G radio has associated clients. |
|
Alternating between green and blue |
Flashing (once per second) |
Both the 2.4G and 5G radios have associated clients. |
Table 15 LED description (cloud mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state, has connected to Cloudnet, but does not have any associated clients. |
|
Flashing (once per second) |
The AP has connected to Cloudnet, and the radios have associated clients. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Steady on |
The AP is in standby state, has not connected to Cloudnet, and does not have any associated clients. |
|
Flashing (once per second) |
The AP has not connected to Cloudnet, but the radios have associated clients. |
Table 16 LED description (anchor AC mode)
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP has started up and is in standby state, but does not have any associated clients. |
|
Flashing (once per second) |
Only the 2.4G radio has associated clients. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Blue |
Flashing (once per second) |
Only the 5G radio has associated clients. |
|
Alternating between green and blue |
Flashing (once per second) |
Both the 2.4G and 5G radios have associated clients. |
LED descriptions after modification
This section is applicable to the WA6300 AP series and WA6600 AP series in 2484 and later versions.
|
LED color |
Status |
Description |
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
The AP is initializing, or an initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are established. |
|
|
Green |
Steady on |
The AP is in standby state and does not have any associated online clients. |
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (once per second) |
The radios have associated clients. |
|
|
Blue |
Flashing (twice per second) |
The AP is upgrading the image. |
LED descriptions for multi-LED APs
The descriptions for the status LEDs on an AP vary by AP operating mode. For information about the operating modes supported by an AP, see the release notes.
LED descriptions for multi-LED APs (1)
WA6300/WA6500A AP series
LED descriptions before modification
This section is applicable to the following APs:
· WA6300 AP series in versions earlier than 2484.
· WA6500A AP series in versions earlier than 2616.
|
LED |
Color |
Status |
Description |
|
Power status LED |
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
|
Green |
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (once per second) |
The AP is operating in cloud mode and has connected to Cloudnet. |
||
|
Flashing (twice per second) |
The AP is upgrading the image. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
Alternating between yellow and green |
Flashing (once per second) |
The AP is operating in cloud mode and has not connected to Cloudnet. |
|
|
Radio status LED |
N/A |
Off |
The radios are disabled or the LED has been turned off from the CLI. |
|
Yellow |
Flashing (once per second) |
A radio has been enabled but does not have associated clients. |
|
|
Green |
Flashing (once per second) |
A radio has associated clients. |
|
|
LED for a copper or fiber Ethernet port (such as a 1000M, 2.5G, 5G, or 10G port) |
N/A |
Off |
No link is present on the port. |
|
Yellow |
Steady on |
Negotiation has succeeded on the port, and the port is operating at a reduced speed. |
|
|
Flashing (once per second) |
The port is operating correctly at a reduced speed. |
||
|
Green |
Steady on |
Negotiation has succeeded on the port, and the port is operating at the maximum speed. |
|
|
Flashing (once per second) |
The port is operating correctly at the maximum speed. |
||
|
PON |
Green |
Steady on |
Normal PON link. |
|
Flashing (once per second) |
The ONU is registering. |
||
|
Off |
The ONU is not registered. |
||
LED descriptions after modification
This section is applicable to the following APs:
· WA6300 AP series in 2484 and later versions.
· WA6500A AP series in 2616 and later versions.
|
LED |
Color |
Status |
Description |
|
Power status LED |
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
|
Green |
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
Radio status LED |
N/A |
Off |
The radios are disabled or the LED has been turned off from the CLI. |
|
Yellow |
Flashing (once per second) |
A radio has been enabled but does not have associated clients. |
|
|
Green |
Flashing (once per second) |
A radio has associated clients. |
|
|
LED for a copper or fiber Ethernet port (such as a 1000M, 2.5G, 5G, or 10G port) |
N/A |
Off |
No link is present on the port. |
|
Yellow |
Steady on |
Negotiation has succeeded on the port, and the port is operating at a reduced speed. |
|
|
Flashing (once per second) |
The port is operating correctly at a reduced speed. |
||
|
Green |
Steady on |
Negotiation has succeeded on the port, and the port is operating at the maximum speed. |
|
|
Flashing (once per second) |
The port is operating correctly at the maximum speed. |
||
|
PON |
Green |
Steady on |
Normal PON link. |
|
Flashing (once per second) |
The ONU is registering. |
||
|
Off |
The ONU is not registered. |
||
WA7200/WA7300/WA7500/WA7600 AP series
LED descriptions before modification
This section is applicable to the following APs:
· WA7200 AP series and WA7600 AP series in versions earlier than 2614P02.
· WA7300 AP series and WA7500 AP series in versions earlier than 2615.
|
LED |
Color |
Status |
Description |
|
Power status LED |
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
|
Green |
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (once per second) |
The AP is operating in cloud mode and has connected to Cloudnet. |
||
|
Flashing (twice per second) |
The AP is upgrading the image. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
Alternating between yellow and green |
Flashing (once per second) |
The AP is operating in cloud mode and has not connected to Cloudnet. |
|
|
Radio status LED |
N/A |
Off |
The radios are disabled or the LED has been turned off from the CLI. |
|
Yellow |
Flashing (once per second) |
A radio has been enabled but does not have associated clients. |
|
|
Green |
Flashing (once per second) |
A radio has associated clients and the number of associated clients is less than the threshold. |
|
|
Alternating between yellow and green |
Flashing (once per second) |
The number of associated clients has exceeded the threshold. |
|
|
LED for a copper or fiber Ethernet port (such as a 1000M, 2.5G, 5G, or 10G port) |
N/A |
Off |
No link is present on the port. |
|
Yellow |
Steady on |
Negotiation has succeeded on the port, and the port is operating at a reduced speed. |
|
|
Flashing (once per second) |
The port is operating correctly at a reduced speed. |
||
|
Green |
Steady on |
Negotiation has succeeded on the port, and the port is operating at the maximum speed. |
|
|
Flashing (once per second) |
The port is operating correctly at the maximum speed. |
LED descriptions after modification
This section is applicable to the following APs:
· WA7200 AP series and WA7600 AP series in 2614P02 and later versions.
· WA7300 AP series and WA7500 AP series in 2615 and later versions.
|
LED |
Color |
Status |
Description |
|
Power status LED |
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
|
Green |
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
Radio status LED |
N/A |
Off |
The radios are disabled or the LED has been turned off from the CLI. |
|
Yellow |
Flashing (once per second) |
A radio has been enabled but does not have associated clients. |
|
|
Green |
Flashing (once per second) |
A radio has associated clients and the number of associated clients is less than the threshold. |
|
|
Flashing (twice per second) |
The number of associated clients has exceeded the threshold. |
||
|
LED for a copper or fiber Ethernet port (such as a 1000M, 2.5G, 5G, or 10G port) |
N/A |
Off |
No link is present on the port. |
|
Yellow |
Steady on |
Negotiation has succeeded on the port, and the port is operating at a reduced speed. |
|
|
Flashing (once per second) |
The port is operating correctly at a reduced speed. |
||
|
Green |
Steady on |
Negotiation has succeeded on the port, and the port is operating at the maximum speed. |
|
|
Flashing (once per second) |
The port is operating correctly at the maximum speed. |
LED descriptions for multi-LED APs (2)
WA6300 AP series
LED descriptions before modification
This section is applicable to the WA6300 AP series in versions earlier than 2484.
|
LED |
Color |
Status |
Description |
|
Power status LED |
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
Flashing (once per second) |
No radio cards have been detected. |
||
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are present. |
||
|
Green |
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
||
|
Flashing (once per second) |
The AP is operating in cloud mode and has connected to Cloudnet. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
Alternating between yellow and green |
Flashing (once per second) |
The AP is operating in cloud mode and has not connected to Cloudnet. |
|
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
|
Radio status LED |
Yellow |
Flashing (once per second) |
Only the 5G radio has associated clients. |
|
Green |
Flashing (once per second) |
Only the 2.4G radio has associated clients. |
|
|
Alternating between yellow and green |
Flashing (once per second) |
Both the 2.4G and 5G radios have associated clients. |
|
|
N/A |
Off |
The radios do not have any associated clients, or the LED has been turned off from the CLI. |
|
|
LED for a copper or fiber Ethernet port (such as a 1000M, 2.5G, 5G, or 10G port) |
N/A |
Off |
No link is present on the port. |
|
Yellow |
Steady on |
Negotiation has succeeded on the port, and the port is operating at a reduced speed. |
|
|
Flashing (once per second) |
The port is operating correctly at a reduced speed. |
||
|
Green |
Steady on |
Negotiation has succeeded on the port, and the port is operating at the maximum speed. |
|
|
Flashing (once per second) |
The port is operating correctly at the maximum speed. |
||
|
PON |
Green |
Steady on |
Normal PON link. |
|
Flashing (once per second) |
The ONU is registering. |
||
|
Off |
The ONU is not registered. |
||
LED descriptions after modification
This section is applicable to the WA6300 AP series in 2484 and later versions.
|
LED |
Color |
Status |
Description |
|
Power status LED |
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
Flashing (once per second) |
No radio cards have been detected. |
||
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are present. |
||
|
Green |
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
|
Radio status LED |
N/A |
Off |
The radios are disabled or the LED has been turned off from the CLI. |
|
Yellow |
Flashing (once per second) |
The radios do not have any associated clients. |
|
|
Green |
Flashing (once per second) |
A radio has associated clients. |
|
|
LED for a copper or fiber Ethernet port (such as a 1000M, 2.5G, 5G, or 10G port) |
N/A |
Off |
No link is present on the port. |
|
Yellow |
Steady on |
Negotiation has succeeded on the port, and the port is operating at a reduced speed. |
|
|
Flashing (once per second) |
The port is operating correctly at a reduced speed. |
||
|
Green |
Steady on |
Negotiation has succeeded on the port, and the port is operating at the maximum speed. |
|
|
Flashing (once per second) |
The port is operating correctly at the maximum speed. |
||
|
PON |
Green |
Steady on |
Normal PON link. |
|
Flashing (once per second) |
The ONU is registering. |
||
|
Off |
The ONU is not registered. |
||
LED descriptions for multi-LED APs (3)
WA6500 AP series
LED descriptions before modification
This section is applicable to the WA6500B AP series in versions earlier than 2484, which includes the WA6510E-T AP.
|
LED |
Color |
Status |
Description |
|
Power status LED |
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
|
Green |
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (once per second) |
The AP is operating in cloud mode and has connected to Cloudnet. |
||
|
Flashing (twice per second) |
The AP is upgrading the image. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
Alternating between yellow and green |
Flashing (once per second) |
The AP is operating in cloud mode and has not connected to Cloudnet. |
|
|
2.4G radio status LED |
Green |
Flashing (once per second) |
The 2.4G radio has associated clients. |
|
N/A |
Off |
The radio is disabled, or the LED has been turned off from the CLI. |
|
|
5G radio status LED |
Green |
Flashing (once per second) |
The 5G radio has associated clients. |
|
N/A |
Off |
The radio is disabled, or the LED has been turned off from the CLI. |
|
|
GE |
Yellow |
Steady on |
The port has negotiated to operate at 100/10 Mbps. |
|
Flashing |
The port is operating correctly at 100/10 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
N/A |
Off |
No link is present on the port. |
|
|
5GE |
Yellow |
Steady on |
The port has negotiated to operate at 2500/1000/100/10 Mbps. |
|
Flashing |
The port is operating correctly at 2500/1000/100/10 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 5000 Mbps. |
|
|
Flashing |
The port is operating correctly at 5000 Mbps. |
||
|
N/A |
Off |
No link is present on the port. |
|
|
10GE/SFP+ |
Yellow |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 10 Gbps. |
|
|
Flashing |
The port is operating correctly at 10 Gbps. |
||
|
N/A |
Off |
No link is present on the port. |
LED descriptions after modification
This section is applicable to the WA6500B AP series in 2484 and later versions, which includes the WA6510E-T AP.
|
LED |
Color |
Status |
Description |
|
Power status LED |
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
|
Green |
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
|
|
Flashing (twice per second) |
The AP is upgrading the image. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
2.4G radio status LED |
Green |
Flashing (once per second) |
The 2.4G radio has associated clients. |
|
N/A |
Off |
The radio is disabled, or the LED has been turned off from the CLI. |
|
|
5G radio status LED |
Green |
Flashing (once per second) |
The 5G radio has associated clients. |
|
N/A |
Off |
The radio is disabled, or the LED has been turned off from the CLI. |
|
|
GE |
Yellow |
Steady on |
The port has negotiated to operate at 100/10 Mbps. |
|
Flashing |
The port is operating correctly at 100/10 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
N/A |
Off |
No link is present on the port. |
|
|
5GE |
Yellow |
Steady on |
The port has negotiated to operate at 2500/1000/100/10 Mbps. |
|
Flashing |
The port is operating correctly at 2500/1000/100/10 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 5000 Mbps. |
|
|
Flashing |
The port is operating correctly at 5000 Mbps. |
||
|
N/A |
Off |
No link is present on the port. |
|
|
10GE/SFP+ |
Yellow |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 10 Gbps. |
|
|
Flashing |
The port is operating correctly at 10 Gbps. |
||
|
N/A |
Off |
No link is present on the port. |
WA6600 AP series
LED descriptions before modification
This section is applicable to the WA6600 AP series in versions earlier than 2484, which includes the WA6628E-T AP.
|
LED |
Color |
Status |
Description |
|
POWER |
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are present. |
||
|
Green |
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Flashing (once per second) |
The AP is operating in cloud mode and has connected to Cloudnet. |
||
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
Alternating between yellow and green |
Flashing (once per second) |
The AP is operating in cloud mode and has not connected to Cloudnet. |
|
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
|
RADIO1 |
Green |
Flashing (once per second) |
Radio1 has associated clients. |
|
N/A |
Off |
Radio1 is disabled, or the LED has been turned off from the CLI. |
|
|
RADIO2 |
Green |
Flashing (once per second) |
Radio2 has associated clients. |
|
Yellow |
Flashing (once per second) |
In tri-radio mode, radio3 has associated clients. |
|
|
Alternating between yellow and green |
Flashing (once per second) |
In tri-radio mode, both radio2 and radio3 have associated clients. |
|
|
N/A |
Off |
The radio is disabled, or the LED has been turned off from the CLI. |
|
|
GE1/GE2 |
Yellow |
Steady on |
The port has negotiated to operate at 100/10 Mbps. |
|
Flashing |
The port is operating correctly at 100/10 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
N/A |
Off |
No link is present on the port. |
|
|
10GE/SFP+ |
Yellow |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 10 Gbps. |
|
|
Flashing |
The port is operating correctly at 10 Gbps. |
||
|
N/A |
Off |
No link is present on the port. |
LED descriptions after modification
This section is applicable to the WA6600 AP series in 2484 and later versions, which includes the WA6628E-T AP.
|
LEDs |
Color |
Status |
Description |
|
POWER |
Yellow |
Steady on |
· The system software is starting. · An initialization exception has occurred. |
|
Flashing (twice per second) |
The Ethernet ports are down and no mesh links are present. |
||
|
Green |
Flashing (twice per second) |
The AP is upgrading the image. |
|
|
Flashing (once every two seconds) |
The AP has started up in fit mode, but has not registered to any AC. |
||
|
Steady on |
The AP is in standby state. (The fit AP has registered with an AC.) |
||
|
N/A |
Off |
No power is present or the LED has been turned off from the CLI. |
|
|
RADIO1 |
Green |
Flashing (once per second) |
Radio1 has associated clients. |
|
N/A |
Off |
Radio is disabled, or the LED has been turned off from the CLI. |
|
|
RADIO2 |
Green |
Flashing (once per second) |
Radio2 has associated clients. |
|
Yellow |
Flashing (once per second) |
In tri-radio mode, radio3 has associated clients. |
|
|
Alternating between yellow and green |
Flashing (once per second) |
In tri-radio mode, both radio2 and radio3 have associated clients. |
|
|
N/A |
Off |
The radio is disabled, or the LED has been turned off from the CLI. |
|
|
GE1/GE2 |
Yellow |
Steady on |
The port has negotiated to operate at 100/10 Mbps. |
|
Flashing |
The port is operating correctly at 100/10 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
N/A |
Off |
No link is present on the port. |
|
|
10GE/SFP+ |
Yellow |
Steady on |
The port has negotiated to operate at 1000 Mbps. |
|
Flashing |
The port is operating correctly at 1000 Mbps. |
||
|
Green |
Steady on |
The port has negotiated to operate at 10 Gbps. |
|
|
Flashing |
The port is operating correctly at 10 Gbps. |
||
|
N/A |
Off |
No link is present on the port. |
LED description for the reset button
Table 28 LED description for the reset button
|
Reset button |
Press and hold duration (seconds) |
LED color |
LED status |
Description |
|
RESET |
0 to 5 |
Green |
Steady on |
Reset the AP. |
|
5 to 20 |
Green |
Flashing (twice per second) |
Restore to the factory defaults. |
|
|
20 to 30 |
Yellow |
Flashing (once every two seconds) |
The AP is operating in fit mode. |
|
|
Flashing (twice per second) |
The AP is operating in anchor AC mode. |
|||
|
Flashing (four times per second) |
The AP is operating in cloud mode. |
|||
|
> 30 |
Yellow |
Flashing (twice per second) |
The AP is operating in anchor AC mode. |
|
|
Flashing (four times per second) |
The AP is operating in cloud mode. |
|||
|
Green |
Flashing (four times per second) |
The AP is switching from fit mode to cloud mode. Note: After you release the button, if the AP has switched from fit mode to cloud mode, it will restart for the new mode to take effect. |
